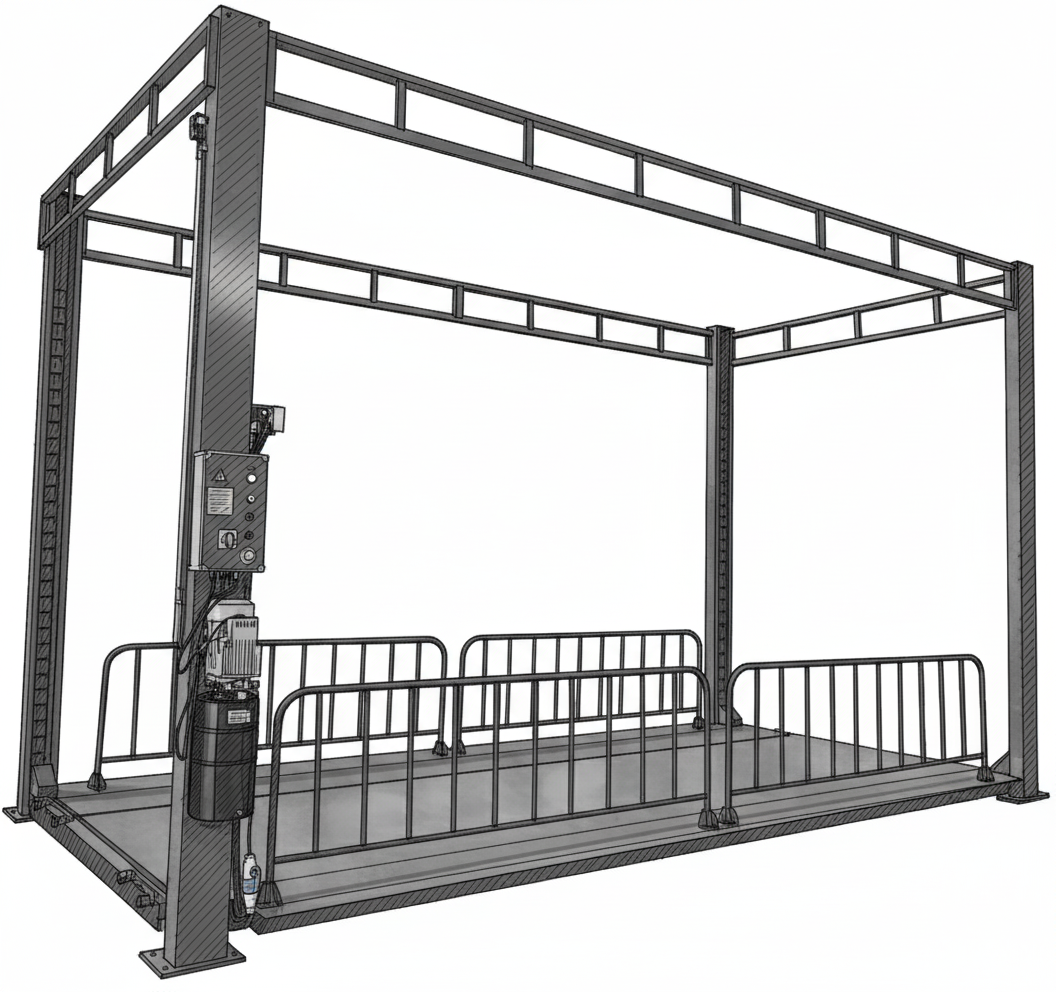

The Bannockburn: Four Post Mezzanine & Tall Parking Lift

The BANNOCKBURN is an outstanding piece of design incorporating the tried and tested 4 post format coupled with the need for smaller mezzanine lifts, without the time and expense of getting 3 phase electrical supply.
This high-quality lift provides an essential link between the expensive much larger industrial floor to floor lifts and the smaller commercial workshop lifts.
This ingenious design incorporates many of the invaluable features for a successful mezzanine lift whilst retaining the simplicity and budget cost of the workshop lifts.
The lift alternatively can also be primarily used to park extra tall vehicles such as Motorhomes, Caravans and high top vans.

We also have other sized platforms, lifting heights and lifting capacities available, listed in the options tab. Like all our lifts we offer full in house layout design, installation and post install servicing if required. The controls are simple to use, with all the main functions being carried out by the press of a button. One button to take the lift up, another to bring it down and one to lock it in place – it really couldn’t be simpler. Unlike almost every other company in our sector, we carry out all installation work, all design services required, supply thousands of spares all in house. We fulfil all the services required from inception to completion completed by our own people. Even after installation, we offer on-going service contracts to make sure that everything is kept in top working condition. The tough powder coat finish will mean that your lift will still look great even after years of use. The tough powder coat finish will mean that your lift will still look great even after years of use.

Description
Uses
Specifications
Downloads

The Bannockburn Mezzanine Car Lift is an ideal small to mid-range floor to floor lift, which also doubles up as a Tall Parking Lift which is ideal for storing of Motorhomes, high top commercial vehicles as it will double the available parking spaces, height permitting.

We stock the Bannockburn in its standard form, which is the 3.0m lifting height version, though a list of other lifting heights available are from; 2.8m through to 3.80m. For full details pls refer to the ‘Options Tab’. These different heights represent a good range of popular mezzanine platform heights, though we are able to ask the factory to produce bespoke dims to the customer’s requirements.

Further optional dimensions are available such as increased loading and different platform dimensions, which are ‘on request’ .

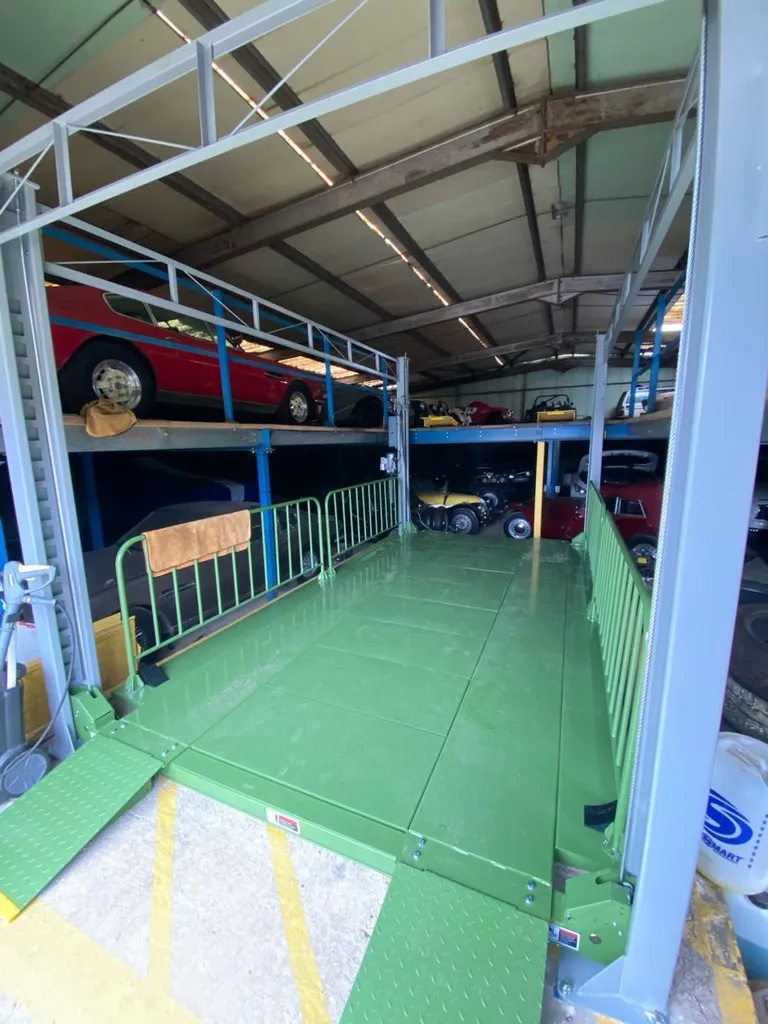

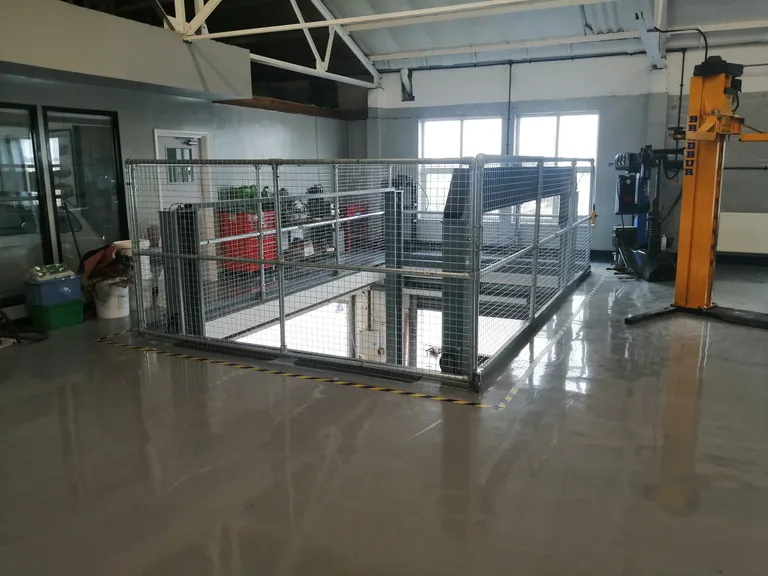

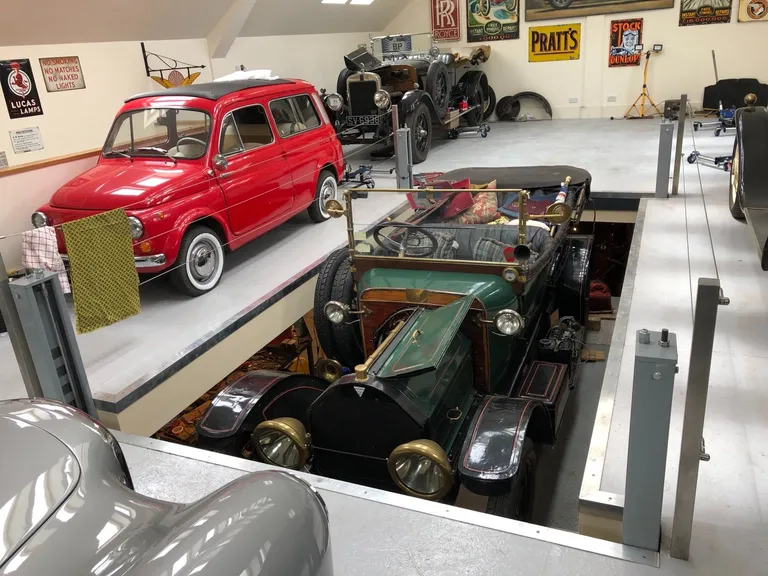

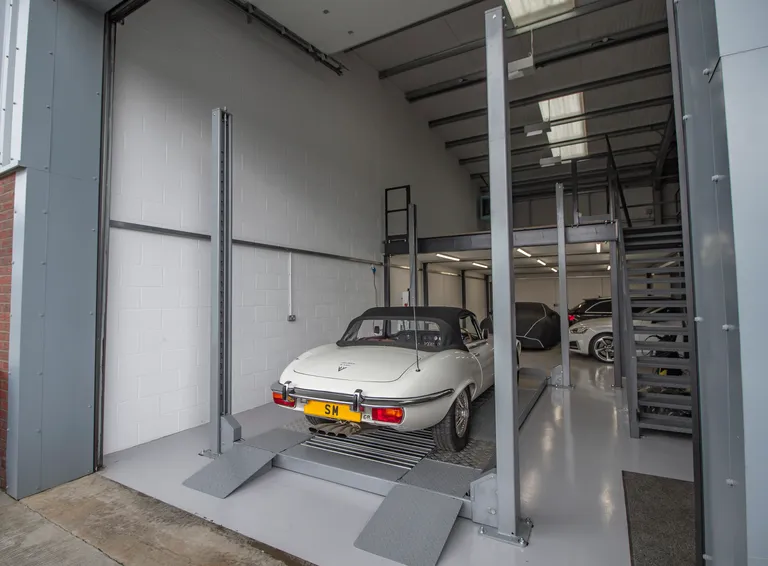

We have installed many of these into barns, modern agricultural, older style industrial units, many of these being too low to accommodate full-sized mezzanine lifts such as our Lothian design.

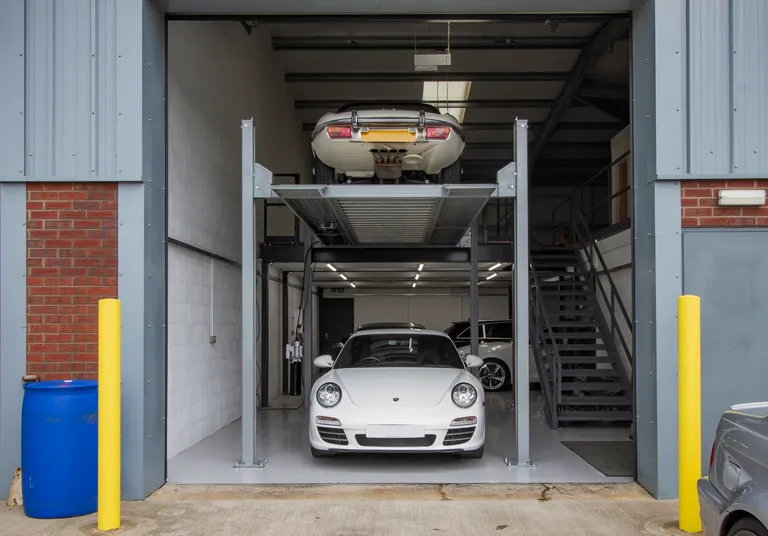

As a parking lift, its height permits, all but the very tallest of vehicles to sit comfortably underneath. These have found favour with our clients that are in the Motorhomes and Commercial Vehicle business, here these stackers double your parking spaces. The tried and tested design delivers stable and easy to use performance, year in, year out.

The platform runways can have infill panels added, either plastic oil drip trays or load-bearing metal ones, these combined with additional optional side panels, give a super wide deck.

The powerful and reliable motor whilst able to lift 4.0 tons to a height of 3 metres, is still able to work off a domestic 240v electrical supply. We’d advise to get your electrician to pre-check your wiring and put in a motor rated circuit breaker and you’re set and ready to go!

The Bannockburn 3.0m lift model is a stock item for us, so most of the time we can get you up and running at pretty short notice. Give us a call and we can send you over a quote for either the lift ex-works, delivered, or as most customers choose, delivered and installed. If you like the quote and want to proceed, against a very small deposit, in most cases we will visit your site and measure up. We might struggle with more out of the ways places but give us a call and we can chat about it. We are also able to make up technical CAD drawings at a very reasonable cost.

At Strongman Lifts we continually strive to improve the design and features of our lifts. Having been in business successfully since 2007, the images on our website reflect that length of time. If there is some particular feature or dimension that is particularly important to you and your purchase, you should check with the office before making any purchase. Thank you.

Use cases goes here

• Lifting Capacity: 4.0 Ton
• Lifting Time: 50 Seconds
• Lifting Height: 3000 mm (3 metres)
• Overall Length (Without ramp): 5203 mm
• Overall Width: 2701 mm
• Width Between Posts: 2292 mm
• Overall Height: 3254 mm (Plus Cable Ends)
• Width between Platforms: 982 mm
• Platform Thickness: 125 mm
• Toe Protection under platform: 70 mm
• Motor: 2.2kWh
• Power: Standard Single Phase 240V (works off a domestic supply)
• Electrical Requirement: Female Ceeform socket required, with a minimum C16 motor rated breaker installed in your fuse board (to be installed by the client's electrician).
