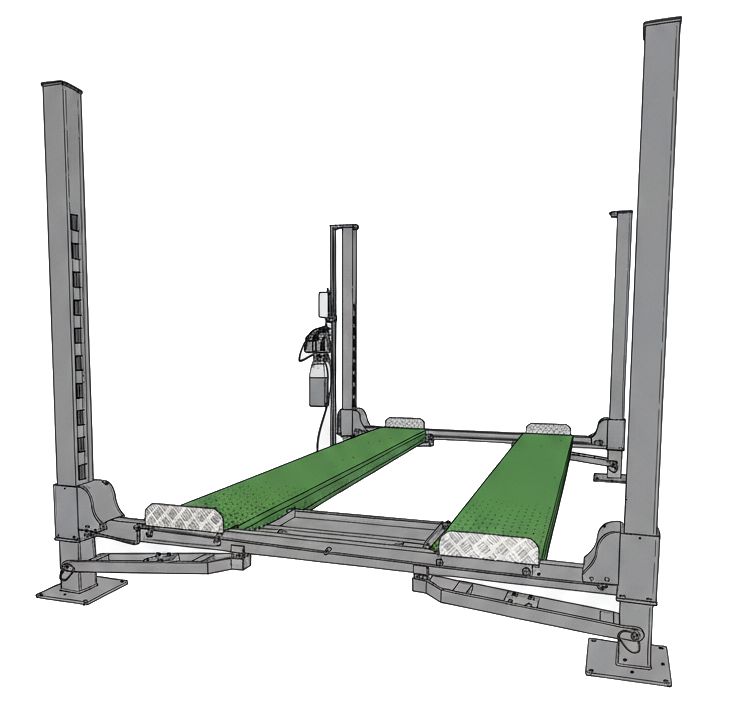

The Alness: Maintenance and Parking Four Post Car Lift

The ALNESS has unique design which delivers a much more stable unit than a standard four post. The vehicle raises up to a maximum height of 1800mm, providing clearance of around five and a half feet which in metric is 1685mm.

This 4 post stacker can also be purchased with a mobility kit that turns the unit into a fully mobile lift enhancing its usefulness and potential uses. A further asset is that this 4 post stacker doesn’t need to be bolted down, it can be used as a free standing car lift, though we’d recommend if using the Alness for maintenance usage, that pinning the lift down would be recommended.

Description Specification Downloads

The ALNESS is one of our Four Post Car Lift, which can be used for vehicle maintenance as well as parking cars. The vehicle raises up to a maximum height of 1800mm, giving a clearance underneath of 1685mm with manual lock release. (There is a taller version available too.)

The outstanding feature is a strong cross-beam wrap-around post design to give it strength and stability.

The car ramp can have its motor pump unit mounted on the the front right post or the back left post. There are a number of infill options that can be fitted between the runways, the best one will depend on whether you intend to use the lift for maintenance or not. Heavy metal drip takes might be useful, but if you’re having to lift them on and off every day, they can be a chore.

At Strongman Lifts we continually strive to improve the design and features of our lifts. Having been in business successfully since 2007, the images on our website reflect that length of time. If there is some particular feature or dimension that is particularly important to you and your purchase, you should check with the office before making any purchase. Thank you.

• Total width: 2870mm
• Total width between posts: 2350mm
• Total width between pulleys: 1914mm (car entry at tyre height)
• Width of platforms: 456mm
• Width between platforms: 894mm
• Total length including up-ramps: 5196mm
• Total length excluding up-ramps: 4290mm
• Length of platforms: 3985mm
• Total height: 2412mm
• Maximum lifting height: 1800mm (to top of platform)
• Lifting capacity: 4000kg
• Lifting time: 56s
• Platform thickness: 110mm
• Toe protection under platform: 16mm
• Motor: 3HP
• Power supply: 240V single phase @ 16A
• Circuit breaker required: 16A, C or D rated circuit breaker
• Gross weight of unit: 940kg
